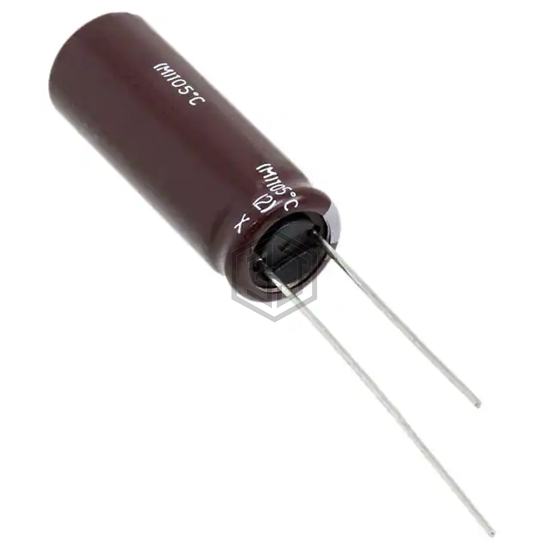

CAP ALUM 390UF 20% 63V RADIAL
EKYB630ELL391MJ30S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 390UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,273
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 890 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.78 A @ 100 kHz |
| Impedance | 40 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63ZLH390MEFC12.5X20 | Rubycon | CAP ALUM 390UF 20% 63V RADIAL | 93% | View |
| ELXZ500ELL391MK20S | United Chemi-Con | CAP ALUM 390UF 20% 50V RADIAL | 81% | View |
| EGPA101ELL391MM25S | United Chemi-Con | CAP ALUM 390UF 20% 100V RADIAL | 78% | View |
| LGR2D391MELA30 | Nichicon | CAP ALUM 390UF 20% 200V SNAP | 68% | View |
| ELHS4H1VSN391MA40S | United Chemi-Con | CAP ALUM 390UF 20% 475V SNAP | 56% | View |
| UPA1E391MPD1TD | Nichicon | CAP ALUM 390UF 20% 25V RADIAL | 55% | View |
Submit your RFQ for EKYB630ELL391MJ30S and get a quote within 24 hours.
