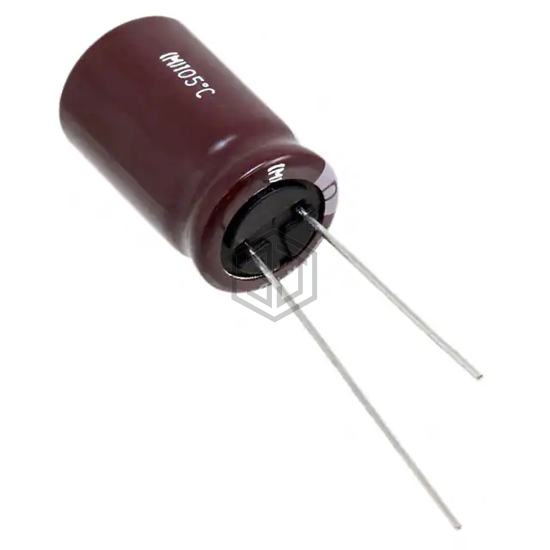

CAP ALUM 470UF 20% 50V RADIAL
EKYB500ELL471MK20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,034
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 910 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.82 A @ 100 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860130678010 | Würth Elektronik | CAP ALUM 470UF 20% 50V RADIAL | 91% | View |
| EKZE630ELL471ML20S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 89% | View |
| EKY-630ELL471MK25S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 85% | View |
| MAL215060471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 77% | View |
| 25ZL470MEFCT810X16 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 72% | View |
| 860020675022 | Würth Elektronik | CAP ALUM 470UF 20% 50V RADIAL | 71% | View |
