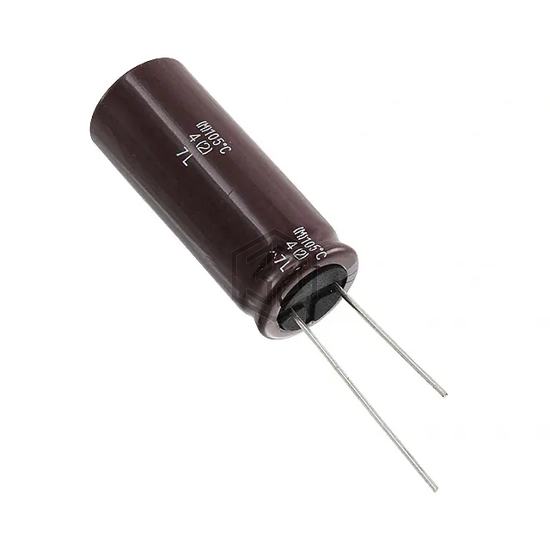

CAP ALUM 4700UF 20% 35V RADIAL
EKYB350ELL472ML40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,746
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.587 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.22 A @ 100 kHz |
| Impedance | 13 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214250472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 35V RADIAL | 79% | View |
| MAL205847472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 40V SNAP | 78% | View |
| EKMH800VSN472MA40S | United Chemi-Con | CAP ALUM 4700UF 20% 80V SNAP | 77% | View |
| UPA1E472MHD1TN | Nichicon | CAP ALUM 4700UF 20% 25V RADIAL | 71% | View |
| 383LX472M100N042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 100V SNAP | 70% | View |
| B41896C4478M | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 16V RADIAL | 64% | View |
