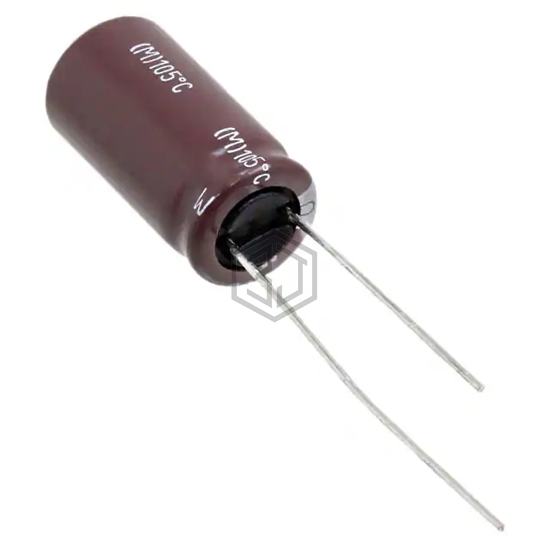

CAP ALUM 1000UF 20% 25V RADIAL
EKYB250ELL102MJ20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,103
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 990 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz |
| Impedance | 37 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ250ELL102MK20S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 99% | View |
| UBT1C102MHD | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 84% | View |
| EEU-FC1C102 | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RADIAL | 81% | View |
| RZW102M1CBK-1316S | SURGE | CAP ALUM 1000UF 20% 16V RADIAL | 77% | View |
| EV1C102MP51020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 70% | View |
| EEU-FM1A102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V RADIAL | 69% | View |
Submit your RFQ for EKYB250ELL102MJ20S and get a quote within 24 hours.
