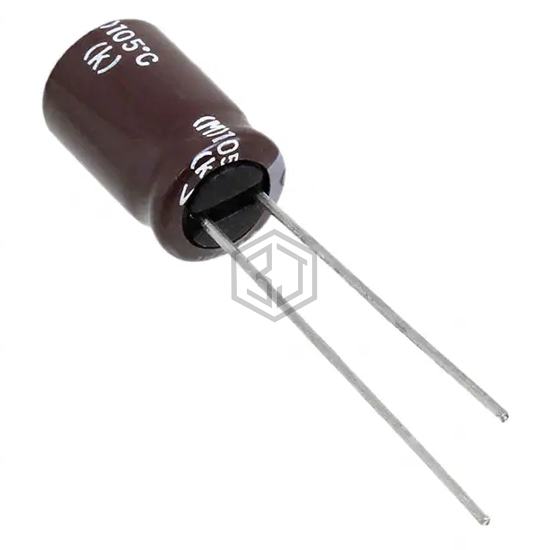

CAP ALUM 470UF 20% 16V RADIAL
EKYB160ELL471MHB5D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,182
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | 840 mA @ 100 kHz |
| Impedance | 87 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860020474014 | Würth Elektronik | CAP ALUM 470UF 20% 25V RADIAL | 76% | View |
| 10RX30470M10X12.5 | Rubycon | CAP ALUM 470UF 20% 10V RADIAL | 73% | View |
| MAL214250471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 62% | View |
| EEU-FR0J471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V RADIAL | 60% | View |
| 25ZLH470MEFCTS10X12.5 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 57% | View |
| 35YXJ470MT810X16 | Rubycon | CAP ALUM 470UF 20% 35V RADIAL | 54% | View |
Submit your RFQ for EKYB160ELL471MHB5D and get a quote within 24 hours.
