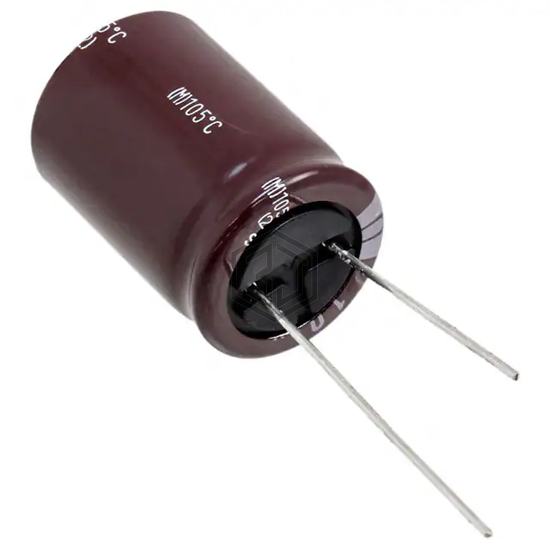

CAP ALUM 560UF 20% 100V RADIAL
EKYB101ELL561MM25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,004
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.135 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.27 A @ 100 kHz |
| Impedance | 27 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080780025 | Würth Elektronik | CAP ALUM 560UF 20% 63V RADIAL | 77% | View |
| LGG2E561MELZ40 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 72% | View |
| 381LX561M250A012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V SNAP | 70% | View |
| LDQ2D561MERYGA | Nichicon | CAP ALUM 560UF 20% 200V RADIAL | 70% | View |
| B41890A6567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 50V RADIAL | 69% | View |
| B43254G2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 67% | View |
Submit your RFQ for EKYB101ELL561MM25S and get a quote within 24 hours.
