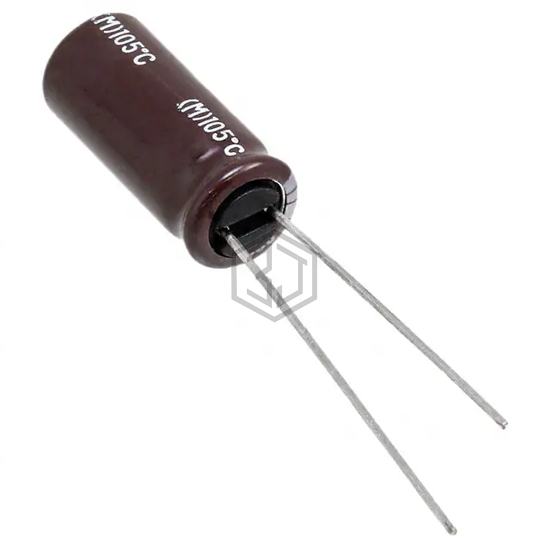

CAP ALUM 56UF 20% 100V RADIAL
EKYB101ELL560MH20D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 56UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,105
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 294 mA @ 120 Hz |
| Ripple Current @ High Frequency | 735 mA @ 100 kHz |
| Impedance | 110 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80ZLJ56MTA8X16 | Rubycon | CAP ALUM 56UF 20% 80V RADIAL | 75% | View |
| 100YXH56MEFCTA8X20 | Rubycon | CAP ALUM 56UF 20% 100V RADIAL | 70% | View |
| UAS2G560MHD61TN | Nichicon | CAP ALUM 56UF 20% 400V RADIAL | 68% | View |
| 450LXW56MEFR14.5X25 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 57% | View |
| EKZE500ELL560MF11D | United Chemi-Con | CAP ALUM 56UF 20% 50V RADIAL | 52% | View |
| MAL213668569E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56UF 20% 63V RADIAL | 51% | View |
Submit your RFQ for EKYB101ELL560MH20D and get a quote within 24 hours.
