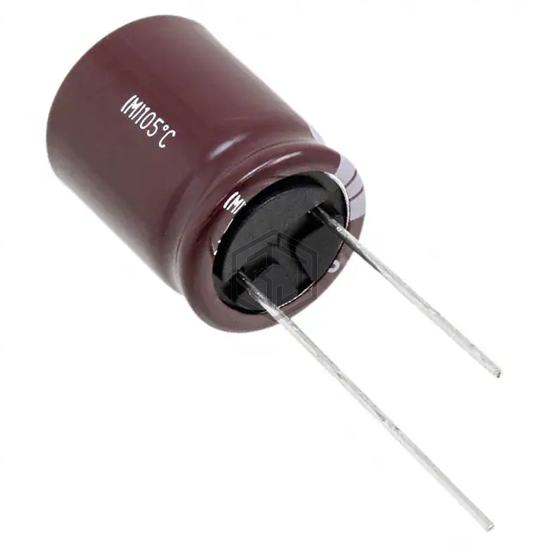

CAP ALUM 270UF 20% 100V RADIAL
EKYB101ELL271ML20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 270UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,032
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 875 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.75 A @ 100 kHz |
| Impedance | 36 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC2A271SB | Panasonic Electronic Components | CAP ALUM 270UF 20% 100V RADIAL | 85% | View |
| LGJ2C271MELA | Nichicon | CAP ALUM 270UF 20% 160V SNAP | 79% | View |
| 80ZLH270MEFC12.5X20 | Rubycon | CAP ALUM 270UF 20% 80V RADIAL | 73% | View |
| LAR2E271MELZ25 | Nichicon | CAP ALUM 270UF 20% 250V SNAP | 72% | View |
| 63ZLJ270MG412.5X16 | Rubycon | CAP ALUM 270UF 20% 63V RADIAL | 70% | View |
| 220MXG270MEFCSN22X25 | Rubycon | CAP ALUM 270UF 20% 220V SNAP | 67% | View |
Submit your RFQ for EKYB101ELL271ML20S and get a quote within 24 hours.
