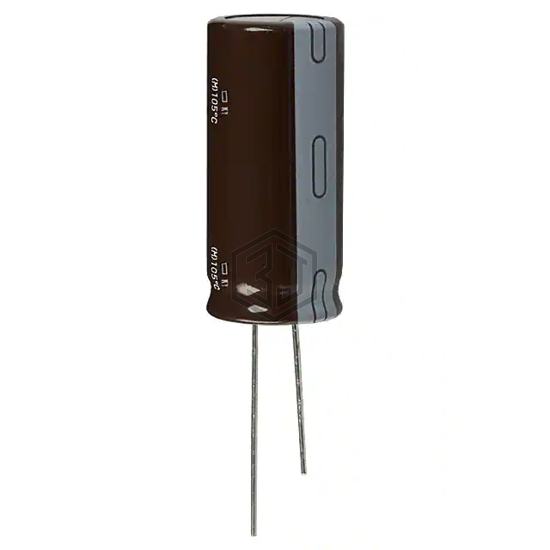

CAP ALUM 3900UF 20% 35V RADIAL
EKY-350ELL392MM40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,332
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.28 A @ 100 kHz |
| Impedance | 12 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXG3900MEFCGC16X35.5 | Rubycon | CAP ALUM 3900UF 20% 25V RADIAL | 80% | View |
| MALIEYH07BU439H42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 50V SNAP | 78% | View |
| MALIEYH07BA439J02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 63V SNAP | 72% | View |
| EEU-FK1C392L | Panasonic Electronic Components | CAP ALUM 3900UF 20% 16V RAD TH | 64% | View |
| EEU-FR0J392B | Panasonic Electronic Components | CAP ALUM 3900UF 20% 6.3V RADIAL | 58% | View |
| ELXY100ELL392MK40S | United Chemi-Con | CAP ALUM 3900UF 20% 10V RADIAL | 50% | View |
Submit your RFQ for EKY-350ELL392MM40S and get a quote within 24 hours.
