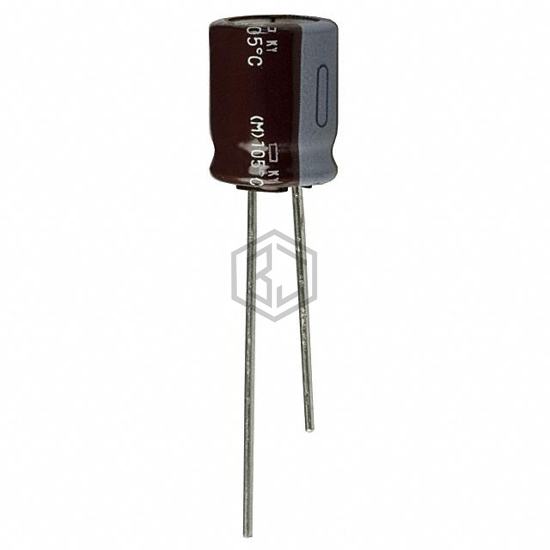

CAP ALUM 220UF 20% 35V RADIAL
EKY-350ELL221MJC5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 220UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,437
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 432.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 865 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215090225E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V RADIAL | 97% | View |
| 678D227M025CG3D | Vishay Sprague | CAP ALUM 220UF 20% 25V RADIAL | 80% | View |
| B41888W5227M | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 25V RADIAL | 77% | View |
| EEU-FR1E221 | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V RADIAL TH | 76% | View |
| UVY1J221MHD4 | Nichicon | CAP ALUM 220UF 20% 63V RADIAL | 63% | View |
| MAL215262221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 200V RADIAL | 52% | View |
Submit your RFQ for EKY-350ELL221MJC5S and get a quote within 24 hours.
