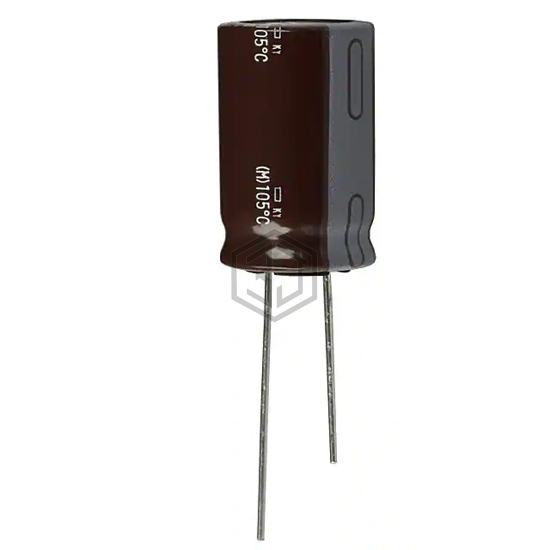

CAP ALUM 1800UF 20% 35V RADIAL
EKY-350ELL182ML25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,287
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.758 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.93 A @ 100 kHz |
| Impedance | 21 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ350EC5182ML25S | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 94% | View |
| KY25VB182M12X30LL | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 85% | View |
| EKZE250ELL182MK30S | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 83% | View |
| EEU-FM1E182L | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V RADIAL | 70% | View |
| 381LX182M180A452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 180V SNAP | 62% | View |
| LAR2D182MELB50 | Nichicon | CAP ALUM 1800UF 20% 200V SNAP | 55% | View |
Submit your RFQ for EKY-350ELL182ML25S and get a quote within 24 hours.
