CAP ALUM 330UF 20% 25V RADIAL

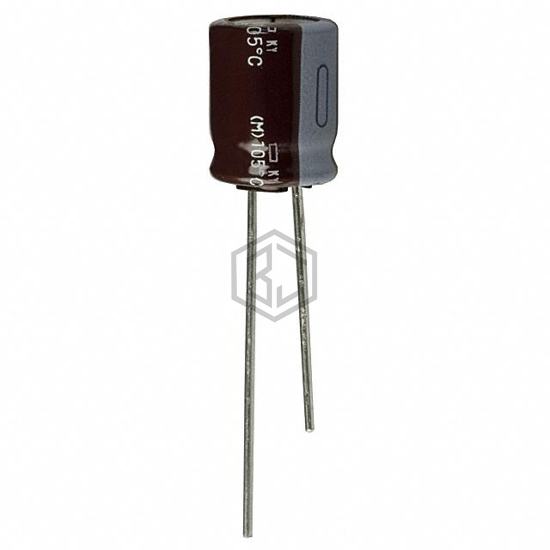

EKY-250ETD331MJC5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,820
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 432.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 865 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215036331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 94% | View |
| RUA331M1EBK-1325S | SURGE | CAP ALUM 330UF 20% 25V RADIAL | 83% | View |
| EKY-350ETD331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 35V RADIAL | 74% | View |
| URZ1J331MHD1TO | Nichicon | CAP ALUM 330UF 20% 63V RADIAL | 72% | View |
| 16RX30330MT810X20 | Rubycon | CAP ALUM 330UF 20% 16V RADIAL | 71% | View |
| EEU-FM1E331L | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V RADIAL | 70% | View |
