CAP ALUM 330UF 20% 16V RADIAL

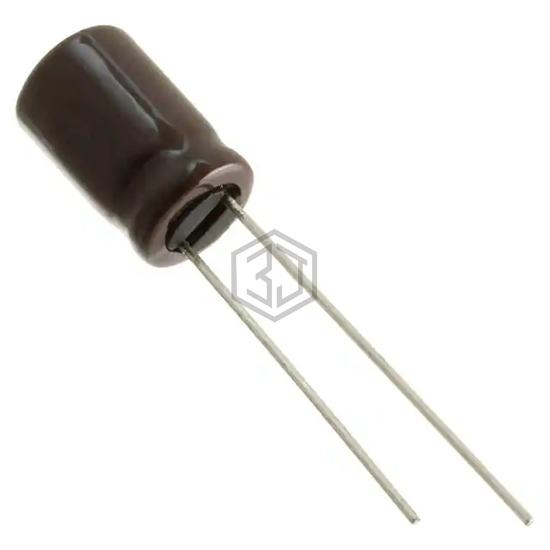

EKY-160ELL331MHB5D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,173
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 320 mA @ 120 Hz |
| Ripple Current @ High Frequency | 640 mA @ 100 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
EKY-160ELL331MHB5D is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16YXA330MEFCCE8X11.5 | Rubycon | CAP ALUM 330UF 20% 16V RADIAL | 80% | View |
| RXJ331M1EBK-1016S | Surge | CAP ALUM 25V POLAR | 77% | View |
| EEU-FC1E331L | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V RADIAL | 72% | View |
| UPJ1E331MPD6TD | Nichicon | CAP ALUM 330UF 20% 25V RADIAL | 71% | View |
| EKMQ101ETD331MK25S | United Chemi-Con | CAP ALUM 330UF 20% 100V RADIAL | 61% | View |
| 25ZL330MEFCCT10X12.5 | Rubycon | CAP ALUM 330UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for EKY-160ELL331MHB5D and get a quote within 24 hours.
