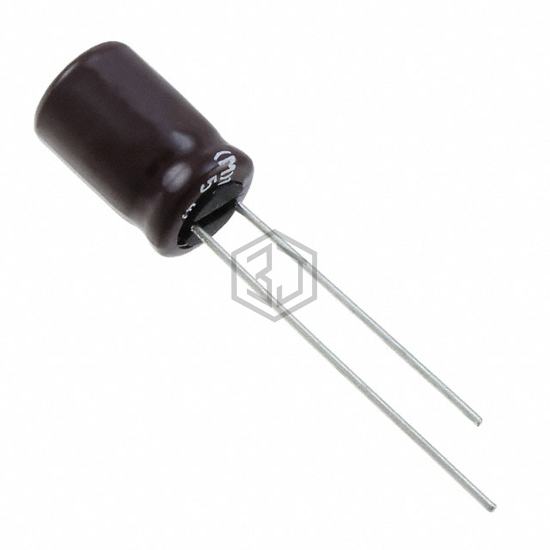

CAP ALUM 470UF 20% 16V RADIAL
EKY-160EC3471MH15D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,008
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | 840 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
EKY-160EC3471MH15D is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKY-160ETD471MH15S | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 100% | View |
| MAL214065471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 92% | View |
| UHE1C471MPD1AA | Nichicon | CAP ALUM 16V POLAR | 90% | View |
| 16YXA470MEFCT78X11.5 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 82% | View |
| LKX2E471MESA25 | Nichicon | CAP ALUM 470UF 20% 250V SNAP | 56% | View |
| MAL219390124E3 | Vishay Beyschlag/Draloric/BC Components | 470UF 475V/570V 35X50MM 105C/60C | 56% | View |
