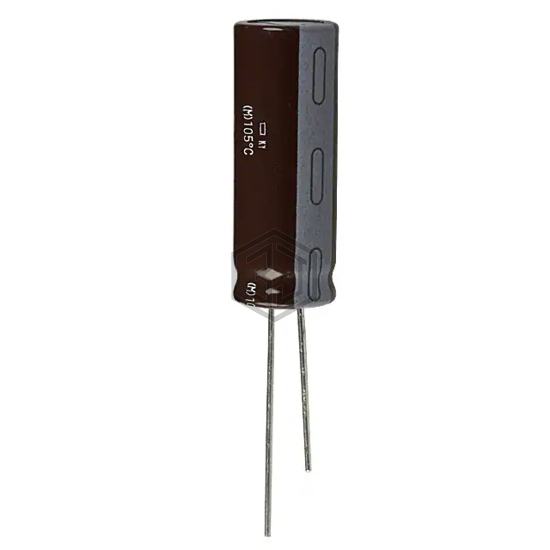

CAP ALUM 560UF 20% 100V RADIAL
EKY-101ELL561MMN3S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,077
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXF800ELL561MM20S | United Chemi-Con | CAP ALUM 560UF 20% 80V RADIAL TH | 88% | View |
| 35YXS560MEFC10X20 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 77% | View |
| UBX1J561MHL | Nichicon | CAP ALUM 560UF 20% 63V RADIAL | 75% | View |
| EKZE500ELL561MK25S | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 69% | View |
| 381LQ561M180J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 180V SNAP | 69% | View |
| 50ZLH560MEFCRI12.5X25 | Rubycon | CAP ALUM 560UF 20% 50V RADIAL | 67% | View |
Submit your RFQ for EKY-101ELL561MMN3S and get a quote within 24 hours.
