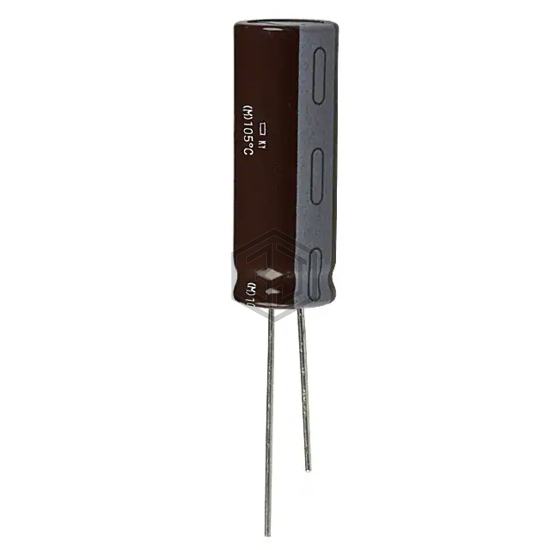

CAP ALUM 470UF 20% 100V RADIAL
EKY-101ELL471MLN3S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,207
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 925 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.85 A @ 100 kHz |
| Impedance | 32 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPA101ELL471ML35S | United Chemi-Con | CAP ALUM 470UF 20% 100V RADIAL | 86% | View |
| 80ZLJ470M16X25 | Rubycon | CAP ALUM 470UF 20% 80V RADIAL | 79% | View |
| 381LX471M160A202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 160V SNAP | 78% | View |
| EV1E471MNN1012 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 71% | View |
| LGN2Z471MELZ30 | Nichicon | CAP ALUM 470UF 20% 180V SNAP | 70% | View |
| MAL219051471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 60% | View |
Submit your RFQ for EKY-101ELL471MLN3S and get a quote within 24 hours.
