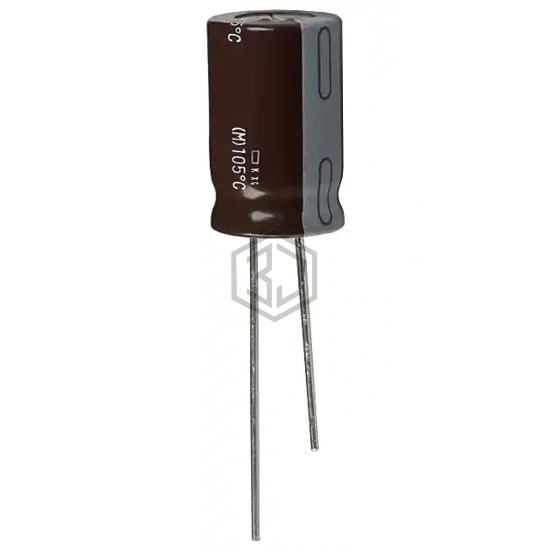

CAP ALUM 15UF 20% 400V RADIAL
EKXG401ETD150MK20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 15UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 4,033
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 550 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXF401ELL160MJ25S | United Chemi-Con | CAP ALUM 16UF 20% 400V RADIAL TH | 91% | View |
| 450BXW15MEFR10X20 | Rubycon | CAP ALUM 15UF 20% 450V RADIAL | 89% | View |
| UCY2H180MHD | Nichicon | CAP ALUM 18UF 20% 500V RADIAL | 81% | View |
| UCY2V150MPD1TD | Nichicon | CAP ALUM 15UF 20% 350V RADIAL | 81% | View |
| UCY2V150MPD | Nichicon | CAP ALUM 15UF 20% 350V RADIAL | 81% | View |
| UVC2G180MPD | Nichicon | CAP ALUM 18UF 20% 400V RADIAL | 76% | View |
