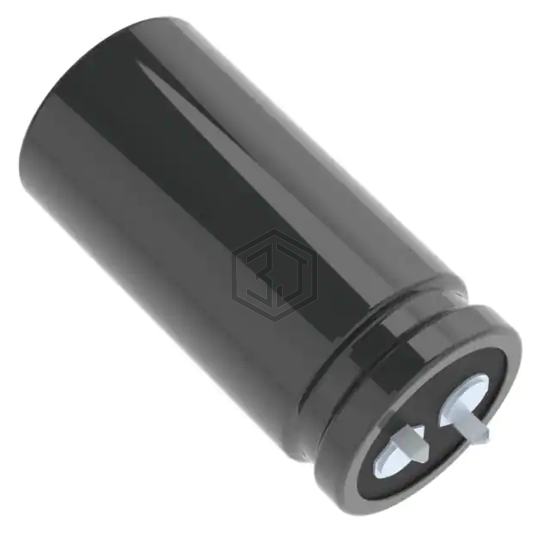

CAP ALUM 560UF 20% 315V SNAP
EKMS3B1VSN561MQ50S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 9,655
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.99 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.8457 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 2.067" (52.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMS3B1VSN561MA30S | United Chemi-Con | CAP ALUM 560UF 20% 315V SNAP | 99% | View |
| EKMM401VNN561MA45U | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 90% | View |
| LGNW6561MELC45 | Nichicon | CAP ALUM 560UF 20% 420V SNAP | 89% | View |
| ELHS451VSN561MA45S | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 89% | View |
| B43508F2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 84% | View |
| LGG2G561MELB45 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 83% | View |
Submit your RFQ for EKMS3B1VSN561MQ50S and get a quote within 24 hours.
