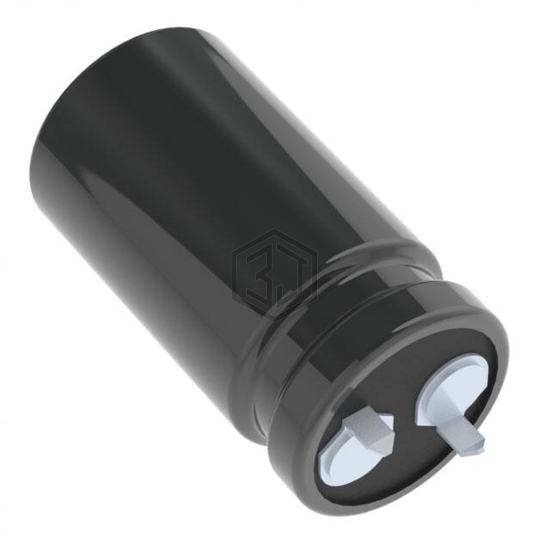

CAP ALUM 82UF 20% 450V SNAP
EKMM451VSN820MN35U is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 82UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,270
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 4.043Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | - |
| Ripple Current @ Low Frequency | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 915.2 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450MXC82MEFCSN20X35 | Rubycon | CAP ALUM 82UF 20% 450V SNAP | 99% | View |
| B43504A5826M60 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 97% | View |
| MAL215969829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 500V SNAP | 94% | View |
| 826LMX450M2BD | Cornell Dubilier / Illinois Capacitor | CAP ALUM 82UF 20% 450V SNAP | 93% | View |
| B43504A9826M002 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 400V SNAP | 90% | View |
| 420LXW82MEFR10X60 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 85% | View |
Submit your RFQ for EKMM451VSN820MN35U and get a quote within 24 hours.
