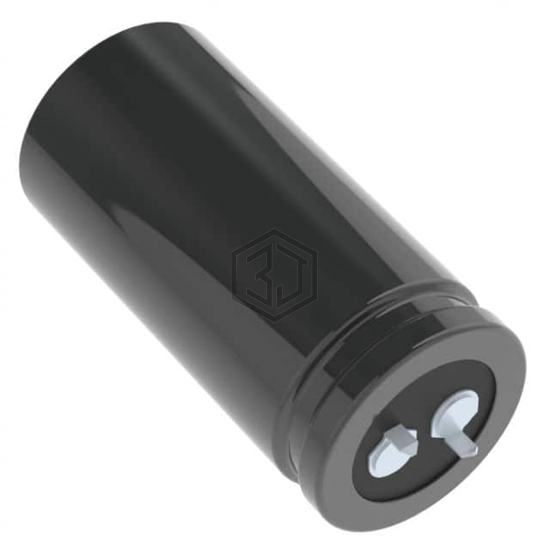

CAP ALUM 390UF 20% 450V SNAP
EKMM451VNN391MA40T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 390UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 9,911
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 850mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2165 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.220" Dia (31.00mm) |
| Height - Seated (Max) | 2.441" (62.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EKMM451VNN391MA40T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXS421VSN391MA35S | United Chemi-Con | CAP ALUM 390UF 20% 420V SNAP | 93% | View |
| EKMH401VSN391MA40S | United Chemi-Con | CAP ALUM 390UF 20% 400V SNAP | 93% | View |
| B43508A9397M80 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 93% | View |
| B43252A9397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 93% | View |
| 500MXG390MEFCSN35X55 | Rubycon | CAP ALUM 390UF 20% 500V SNAP | 83% | View |
| 381LQ391M315K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 315V SNAP | 80% | View |
Submit your RFQ for EKMM451VNN391MA40T and get a quote within 24 hours.
