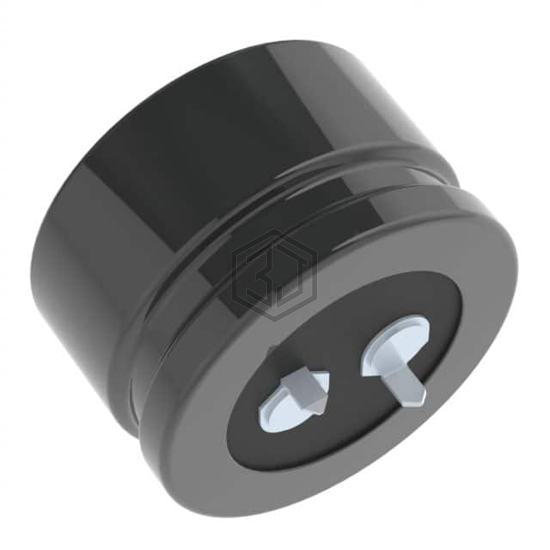

CAP ALUM 120UF 20% 420V SNAP
EKMM421VNN121MA20T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 120UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 8,627
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 2.763Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 670 mA @ 120 Hz |
| Ripple Current @ High Frequency | 958.1 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EKMM421VNN121MA20T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPZW6121MHD | Nichicon | CAP ALUM 120UF 20% 420V RADIAL | 99% | View |
| UCP2W121MHD6 | Nichicon | CAP ALUM 120UF 20% 450V RADIAL | 88% | View |
| 400BXW120MEFR18X30 | Rubycon | CAP ALUM 120UF 20% 400V RADIAL | 77% | View |
| 200TXW120MEFR12.5X25 | Rubycon | CAP ALUM 120UF 20% 200V RAD TH | 77% | View |
| 500VXG120MEFCSN25X35 | Rubycon | CAP ALUM 120UF 20% 500V SNAP | 75% | View |
| UCY2V121MHD6 | Nichicon | CAP ALUM 120UF 20% 350V RADIAL | 70% | View |
Submit your RFQ for EKMM421VNN121MA20T and get a quote within 24 hours.
