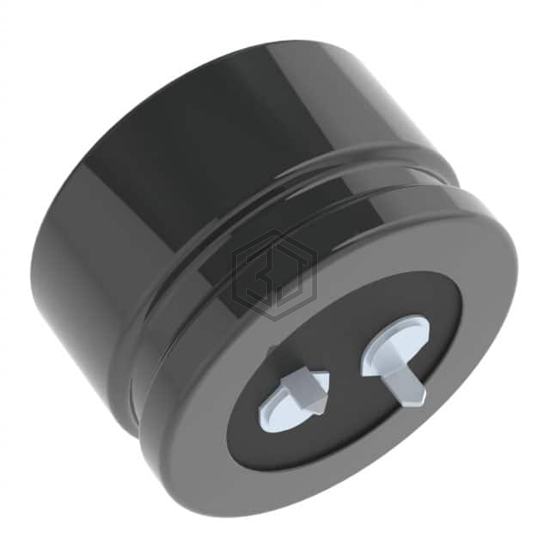

CAP ALUM 150UF 20% 400V SNAP
EKMM401VNN151MA20U is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 150UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,604
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 1.658Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | - |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.144 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504B5157M60 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 92% | View |
| B43505A5157M82 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 88% | View |
| B43544B6157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 500V SNAP | 82% | View |
| LGJ2E151MELA15 | Nichicon | CAP ALUM 150UF 20% 250V SNAP | 80% | View |
| 200BXC150MEFCGC16X25 | Rubycon | CAP ALUM 150UF 20% 200V RADIAL | 65% | View |
| UCY2D151MHD | Nichicon | CAP ALUM 150UF 20% 200V RADIAL | 62% | View |
