CAP ALUM 330UF 20% 200V SNAP

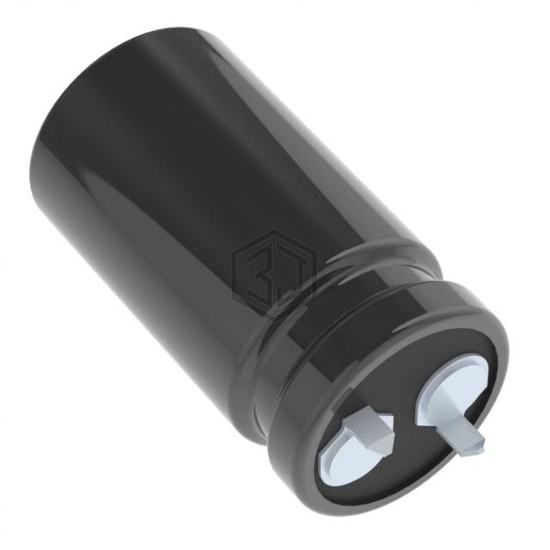

EKMM201VSN331MN35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,327
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 753mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LAR2E331MELZ30 | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 93% | View |
| B43505A2337M82 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 86% | View |
| UCY2E331MHD9 | Nichicon | CAP ALUM 330UF 20% 250V RADIAL | 75% | View |
| EKZN500ELL331MJ20S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 72% | View |
| EKMM451VSN331MA40S | United Chemi-Con | CAP ALUM 330UF 20% 450V SNAP | 71% | View |
| 25ZLG330MEFC10X12.5 | Rubycon | CAP ALUM 330UF 20% 25V RADIAL | 63% | View |
