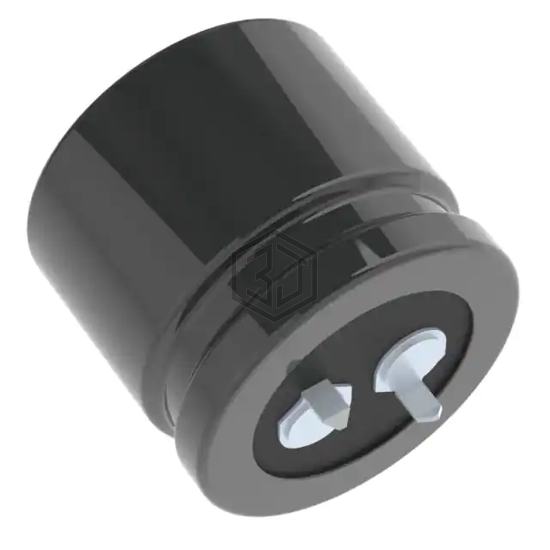

CAP ALUM 560UF 20% 180V SNAP
EKMM181VSN561MR25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 4,530
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | 444mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.67 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.505 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 180KXW560MEFC18X40 | Rubycon | CAP ALUM 560UF 20% 180V RADIAL | 100% | View |
| 180MXC560MEFC22X40 | Rubycon | CAP ALUM 560UF 20% 180V SNAP | 98% | View |
| 200MXC560MEFC25X30 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 95% | View |
| EKMR251VSN561MQ30S | United Chemi-Con | CAP ALUM 560UF 20% 250V SNAP | 88% | View |
| EKMQ251VSN561MP45S | United Chemi-Con | CAP ALUM 560UF 20% 250V SNAP | 85% | View |
| B43508F2567M7 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 85% | View |
Submit your RFQ for EKMM181VSN561MR25S and get a quote within 24 hours.
