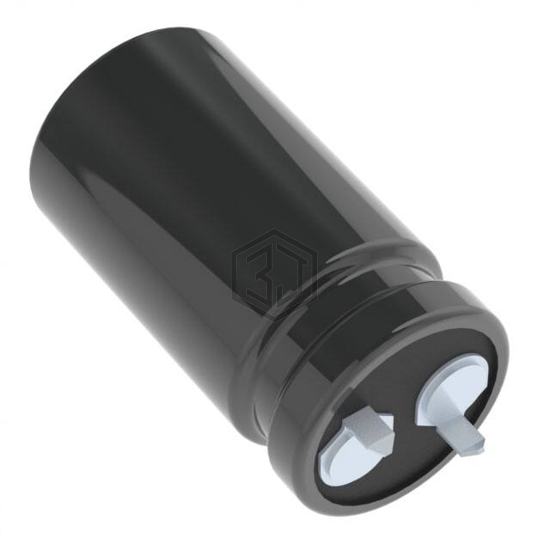

CAP ALUM 470UF 20% 160V SNAP
EKMM161VSN471MN35T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 1,798
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 529mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.34 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.01 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EKMM161VSN471MN35T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGX2E471MELA35 | Nichicon | CAP ALUM 470UF 20% 250V SNAP | 78% | View |
| SL477M100HKLRR | NextGen Components | CAP ALUM 470UF 20% 100V 10K HRS | 70% | View |
| UHE2A471MHD1CA | Nichicon | CAP ALUM 100V POLAR | 70% | View |
| SLP471M350E4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 350V SNAP | 69% | View |
| EKMM451VSN471MR50S | United Chemi-Con | CAP ALUM 470UF 20% 450V SNAP | 65% | View |
| 16ZLK470M8X16 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 60% | View |
Submit your RFQ for EKMM161VSN471MN35T and get a quote within 24 hours.
