CAP ALUM 10000UF 20% 80V SNAP

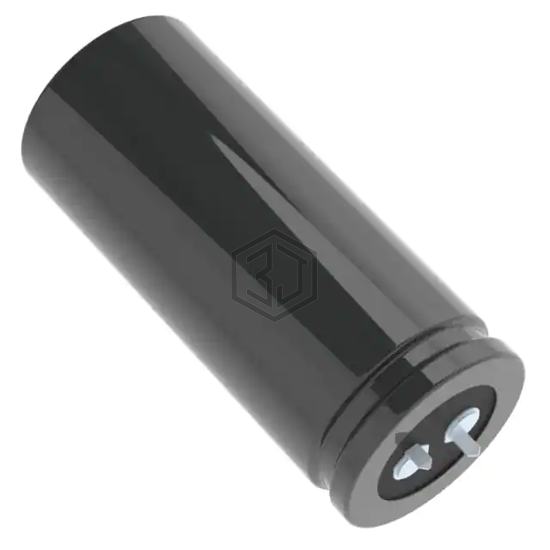

EKMH800VSN103MA80T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 7,377
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 21mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.72 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.864 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EKMH800VSN103MA80T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50MXC10000MEFCSN30X45 | Rubycon | CAP ALUM 10000UF 20% 50V SNAP | 68% | View |
| 381LQ103M050A022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 50V SNAP | 68% | View |
| EKMH500VNN103MR50U | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 67% | View |
| EKMQ500VSN103MR40W | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 66% | View |
| B41605E7109M8 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 40V RADIAL | 60% | View |
| B41858C4109M | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 16V RADIAL | 57% | View |
