CAP ALUM 1200UF 20% 80V SNAP

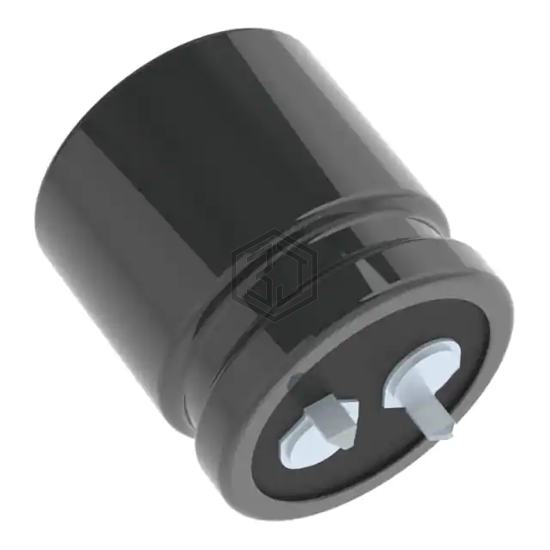

EKMH800VNN122MQ25T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 5,795
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 207mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.39 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.668 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EKMH800VNN122MQ25T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY1K122MELA25 | Nichicon | CAP ALUM 1200UF 20% 80V SNAP | 97% | View |
| LP122M063C1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 63V SNAP | 76% | View |
| EGXF500ELL122MM20S | United Chemi-Con | CAP ALUM 1200UF 20% 50V RAD TH | 73% | View |
| 860040275010 | Würth Elektronik | CAP ALUM 1200UF 20% 10V RADIAL | 69% | View |
| 860160478029 | Würth Elektronik | CAP ALUM 1200UF 20% 25V RADIAL | 65% | View |
| 35ZL1200MEFCGC16X20 | Rubycon | CAP ALUM 1200UF 20% 35V RADIAL | 57% | View |
Submit your RFQ for EKMH800VNN122MQ25T and get a quote within 24 hours.
