CAP ALUM 1200UF 20% 80V SNAP

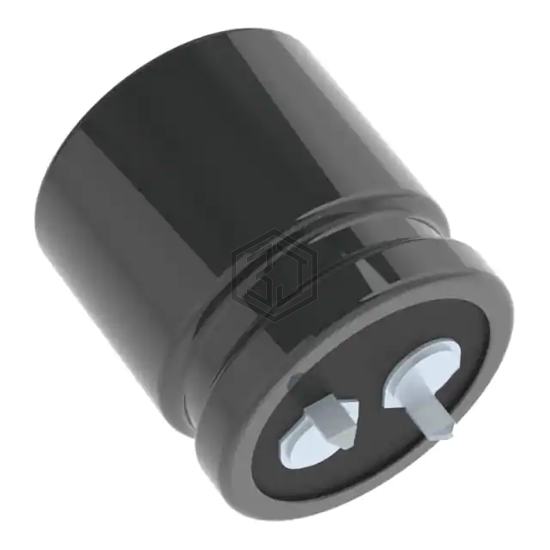

EKMH800VNN122MQ25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 9,678
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 207mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.39 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.668 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80MXG1200MEFCSN20X30 | Rubycon | CAP ALUM 1200UF 20% 80V SNAP | 99% | View |
| 80MXG1200MEFCSN22X25 | Rubycon | CAP ALUM 1200UF 20% 80V SNAP | 99% | View |
| MAL215852122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 80V SNAP | 91% | View |
| 100MXG1200MEFCSN22X30 | Rubycon | CAP ALUM 1200UF 20% 100V SNAP | 85% | View |
| EEU-FC1E122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 25V RADIAL | 73% | View |
| 6.3ZLG1200MEFCTA8X20 | Rubycon | CAP ALUM 1200UF 20% 6.3V RADIAL | 59% | View |
Submit your RFQ for EKMH800VNN122MQ25S and get a quote within 24 hours.
