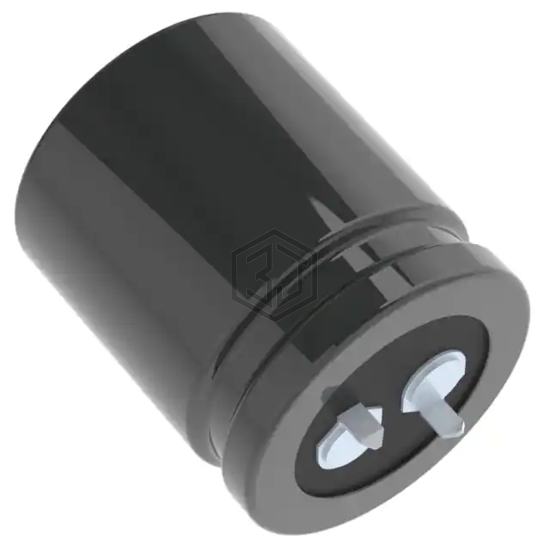

CAP ALUM 39000UF 20% 6.3V SNAP
EKMH6R3VSN393MR35T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 39000UF 20% 6.3V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - Snap-In.
In Stock: 8,084
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 26mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.26 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.5208 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EKMH6R3VSN393MR35T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYH07AC539B42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 39000UF 20% 6.3V SNAP | 91% | View |
| B41252A3399M | EPCOS - TDK Electronics | CAP ALUM 39000UF 20% 10V SNAP | 70% | View |
| 16MXC39000MEFCSN25X50 | Rubycon | CAP ALUM 39000UF 20% 16V SNAP | 59% | View |
| LGU1C393MELC | Nichicon | CAP ALUM 39000UF 20% 16V SNAP | 59% | View |
| MAL215885393E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 39000UF 20% 16V SNAP | 55% | View |
| MAL215845393E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 39000UF 20% 16V SNAP | 55% | View |
Submit your RFQ for EKMH6R3VSN393MR35T and get a quote within 24 hours.
