CAP ALUM 56000UF 20% 6.3V SNAP

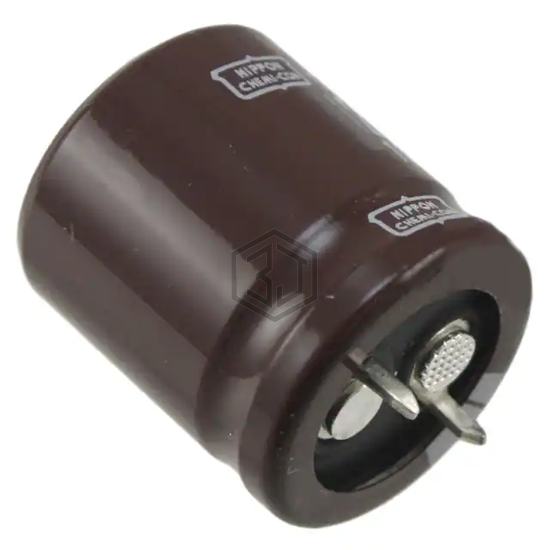

EKMH6R3VRT563MB25T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 56000UF 20% 6.3V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 1,693
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 26mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.87 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.1796 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
EKMH6R3VRT563MB25T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH6R3VRT563MB25U | United Chemi-Con | CAP ALUM 56000UF 20% 6.3V SNAP | 100% | View |
| KMH6.3VN563M30X45T2 | United Chemi-Con | CAP ALUM 56000UF 20% 6.3V SNAP | 97% | View |
| MALIEYH07CB556B42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56000UF 20% 6.3V SNAP | 91% | View |
| EKMH100VSN563MA40S | United Chemi-Con | CAP ALUM 56000UF 20% 10V SNAP | 77% | View |
| EKMH100VSN563MA40T | United Chemi-Con | CAP ALUM 56000UF 20% 10V SNAP | 77% | View |
| 10MXG56000MEFCSN35X45 | Rubycon | CAP ALUM 56000UF 20% 10V SNAP | 72% | View |
