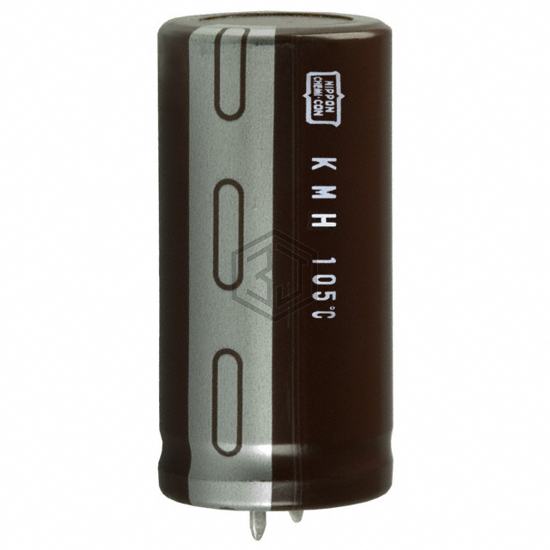

CAP ALUM 470UF 20% 450V SNAP
EKMH451VND471MB40N is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 8,249
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 529mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5454 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
EKMH451VND471MB40N is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXM451VSN471MA50S | United Chemi-Con | CAP ALUM 470UF 20% 450V SNAP | 100% | View |
| 861141486024 | Würth Elektronik | CAP ALUM 470UF 20% 450V SNAP | 99% | View |
| MAL219390104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 500V SNAP | 93% | View |
| MAL225982471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 200V SNAP | 72% | View |
| LGG2E471MELZ35 | Nichicon | CAP ALUM 470UF 20% 250V SNAP | 68% | View |
| EGPA800ELL471ML25S | United Chemi-Con | CAP ALUM 470UF 20% 80V RADIAL | 60% | View |
Submit your RFQ for EKMH451VND471MB40N and get a quote within 24 hours.
