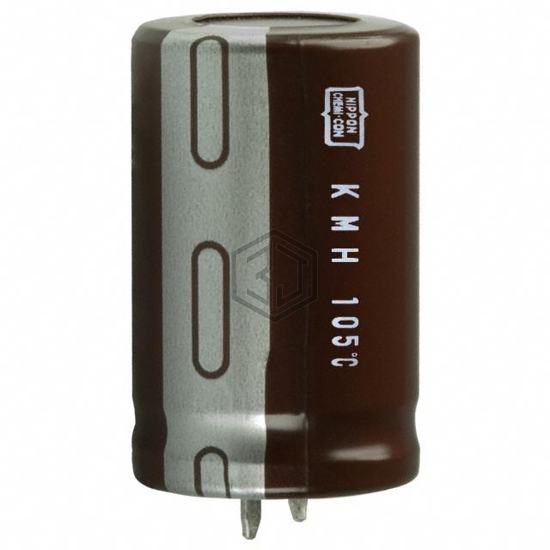

CAP ALUM 390UF 20% 450V SNAP
EKMH451VND391MB35T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 390UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 8,601
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 638mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2451 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
EKMH451VND391MB35T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400MXC390MEFCSN30X45 | Rubycon | CAP ALUM 390UF 20% 400V SNAP | 95% | View |
| B43504E0397M002 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 420V SNAP | 94% | View |
| EKMT421VSN391MR45S | United Chemi-Con | CAP ALUM 390UF 20% 420V SNAP | 79% | View |
| 672D397H020DM5J | Vishay Sprague | CAP ALUM 390UF 20V RADIAL | 56% | View |
| EEU-FK1V391B | Panasonic Electronic Components | CAP ALUM 390UF 20% 35V RADIAL TH | 52% | View |
| EEU-FC1V391B | Panasonic Electronic Components | CAP ALUM 390UF 20% 35V RADIAL | 51% | View |
Submit your RFQ for EKMH451VND391MB35T and get a quote within 24 hours.
