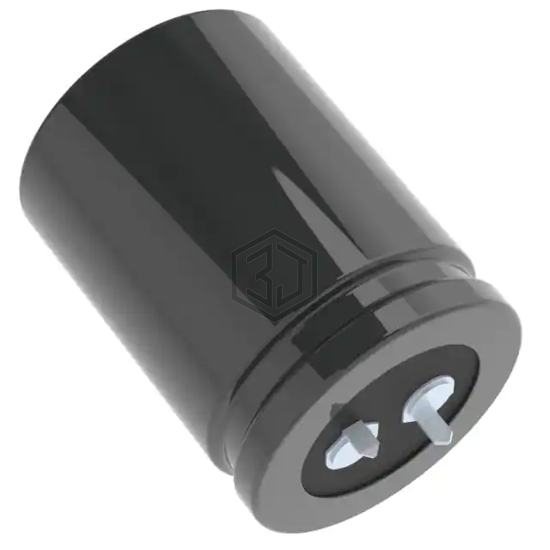

CAP ALUM 560UF 20% 315V SNAP
EKMH3B1VNN561MA45T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 3,226
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 444mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.717 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EKMH3B1VNN561MA45T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 250MXC560MEFCSN30X30 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 92% | View |
| 381LQ561M315K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 315V SNAP | 88% | View |
| 400MXH560MEFCSN25X60 | Rubycon | CAP ALUM 560UF 20% 400V SNAP | 83% | View |
| 381LX561M250J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V SNAP | 81% | View |
| PX2W561MR33050R | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 81% | View |
| B43508B2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 73% | View |
