CAP ALUM 33000UF 20% 35V SNAP

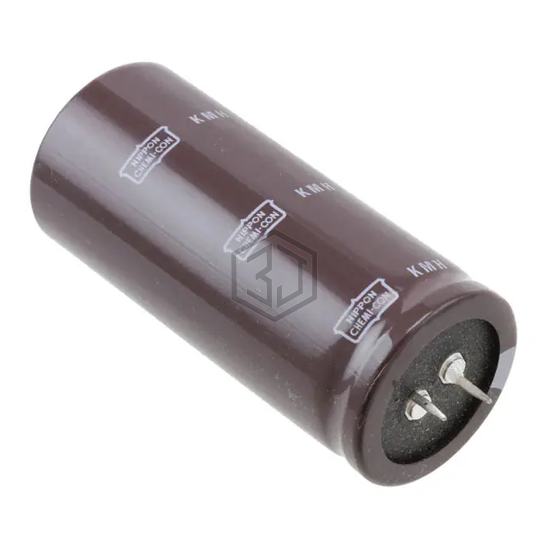

EKMH350VND333MA63T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 33000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 1,909
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 12mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.048 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.559" (65.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
EKMH350VND333MA63T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205824333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 10V SNAP | 71% | View |
| MAL215875333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 16V SNAP | 71% | View |
| MAL205844333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 10V SNAP | 71% | View |
| ALC80A333CF025 | KEMET | CAP ALUM 33000UF 20% 25V SNAP | 66% | View |
| LGY1C333MELB45 | Nichicon | CAP ALUM 33000UF 20% 16V SNAP | 64% | View |
| EKMH160VQT333MB25U | United Chemi-Con | CAP ALUM 33000UF 20% 16V SNAP | 58% | View |
Submit your RFQ for EKMH350VND333MA63T and get a quote within 24 hours.
