CAP ALUM 330UF 20% 250V SNAP

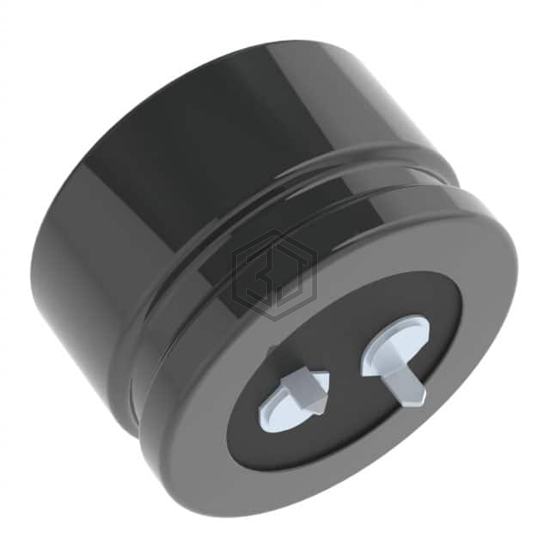

EKMH251VNN331MA20W is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 8,421
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 753mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.18 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.77 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504C2337M60 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 99% | View |
| EKMH401VNN331MR45S | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 79% | View |
| EKMM401VSN331MA30S | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 77% | View |
| EKMZ451VSN331MP50S | United Chemi-Con | CAP ALUM 330UF 20% 450V SNAP | 73% | View |
| B43504C9337M60 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 73% | View |
| EEU-TA1H331SB | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V RADIAL | 69% | View |
Submit your RFQ for EKMH251VNN331MA20W and get a quote within 24 hours.
