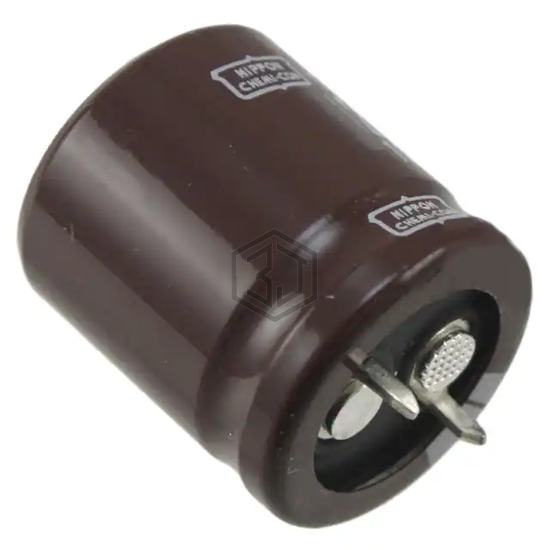

CAP ALUM 470UF 20% 250V SNAP
EKMH251VND471MA25T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 9,247
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 529mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.355 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
EKMH251VND471MA25T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMM251VSN471MQ35U | United Chemi-Con | CAP ALUM 470UF 20% 250V SNAP | 98% | View |
| LGN2Z471MELZ30 | Nichicon | CAP ALUM 470UF 20% 180V SNAP | 84% | View |
| B43252A4477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 350V SNAP | 82% | View |
| LGX2G471MELB45 | Nichicon | CAP ALUM 470UF 20% 400V SNAP | 80% | View |
| 80ZLJ470M16X25 | Rubycon | CAP ALUM 470UF 20% 80V RADIAL | 74% | View |
| 381LX471M160A202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 160V SNAP | 69% | View |
