CAP ALUM 560UF 20% 200V SNAP

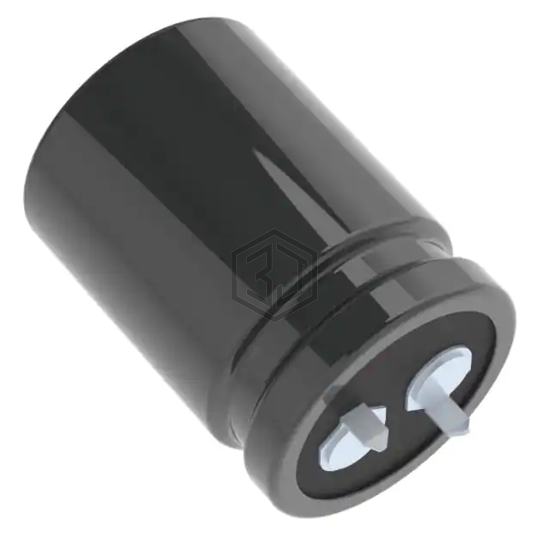

EKMH201VNN561MQ35U is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,422
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 296mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.53 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.295 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP561M200E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 200V SNAP | 100% | View |
| LGU2Z561MELB | Nichicon | CAP ALUM 560UF 20% 180V SNAP | 93% | View |
| B43508F2567M2 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 89% | View |
| B43508F2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 89% | View |
| B43508E2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 88% | View |
| 860160678031 | Würth Elektronik | CAP ALUM 560UF 20% 50V RADIAL | 68% | View |
Submit your RFQ for EKMH201VNN561MQ35U and get a quote within 24 hours.
