CAP ALUM 1000UF 20% 200V SNAP

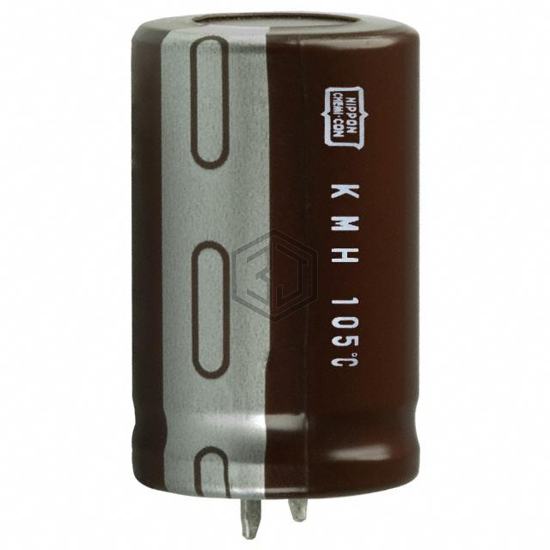

EKMH201VND102MA35T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 3,971
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 249mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
EKMH201VND102MA35T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A2108M2 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 98% | View |
| B43508A2108M82 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 98% | View |
| 381LX102M160A012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 160V SNAP | 90% | View |
| B43505E2108M62 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 90% | View |
| B43505E2108M67 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 90% | View |
| LP102M250H4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 250V SNAP | 87% | View |
Submit your RFQ for EKMH201VND102MA35T and get a quote within 24 hours.
