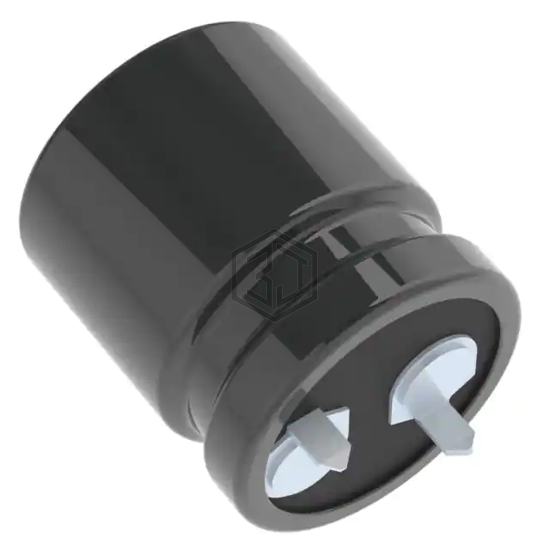

CAP ALUM 560UF 20% 100V SNAP
EKMH101VSN561MP25T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 2,023
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 444mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.26 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EKMH101VSN561MP25T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX561M100H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 100V SNAP | 98% | View |
| MAL224638561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 63V RADIAL | 74% | View |
| 860160475024 | Würth Elektronik | CAP ALUM 560UF 20% 25V RADIAL | 70% | View |
| EKZN100ELL561MHB5D | United Chemi-Con | CAP ALUM 560UF 20% 10V RADIAL | 64% | View |
| 35RX30560M10X20 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 56% | View |
| MAL219390125E3 | Vishay Beyschlag/Draloric/BC Components | 560UF 475V/570V 35X60MM 105C/60C | 56% | View |
Submit your RFQ for EKMH101VSN561MP25T and get a quote within 24 hours.
