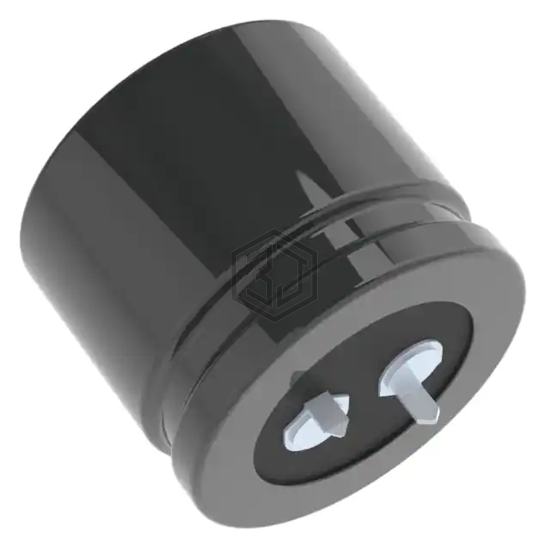

CAP ALUM 2200UF 20% 100V SNAP
EKMH101VNN222MA30W is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 7,020
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 113mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2A222MELC | Nichicon | CAP ALUM 2200UF 20% 100V SNAP | 99% | View |
| EKMH101VNN222MQ50U | United Chemi-Con | CAP ALUM 2200UF 20% 100V SNAP | 99% | View |
| B41896C5228M009 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 25V RADIAL | 70% | View |
| B41858C6228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 50V RADIAL | 68% | View |
| UPA1C222MHD3TO | Nichicon | CAP ALUM 2200UF 20% 16V RADIAL | 66% | View |
| MAL204850222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 51% | View |
Submit your RFQ for EKMH101VNN222MA30W and get a quote within 24 hours.
