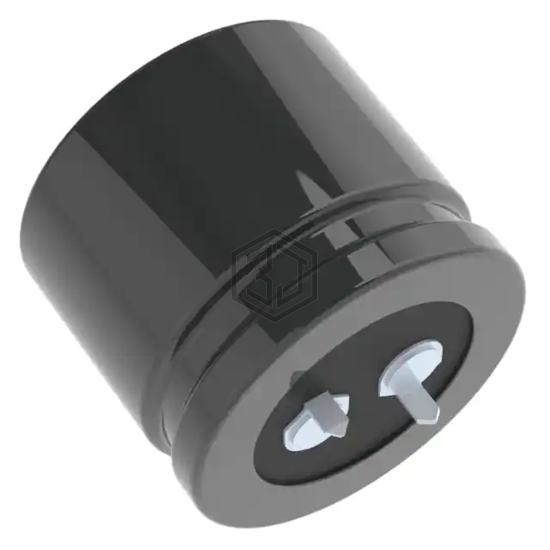

CAP ALUM 2200UF 20% 100V SNAP
EKMH101VNN222MA30T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 5,942
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 113mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EKMH101VNN222MA30T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH800VSN222MA25S | United Chemi-Con | CAP ALUM 2200UF 20% 80V SNAP | 84% | View |
| 25ZLJ2200M12.5X30 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 74% | View |
| 35RX302200M16X35.5 | Rubycon | CAP ALUM 2200UF 20% 35V RADIAL | 70% | View |
| EEU-FR1V222L | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V RADIAL | 69% | View |
| B41858E5228M9 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 25V RADIAL | 64% | View |
| 180MXC2200MEFC35X50 | Rubycon | CAP ALUM 2200UF 20% 180V SNAP | 59% | View |
Submit your RFQ for EKMH101VNN222MA30T and get a quote within 24 hours.
