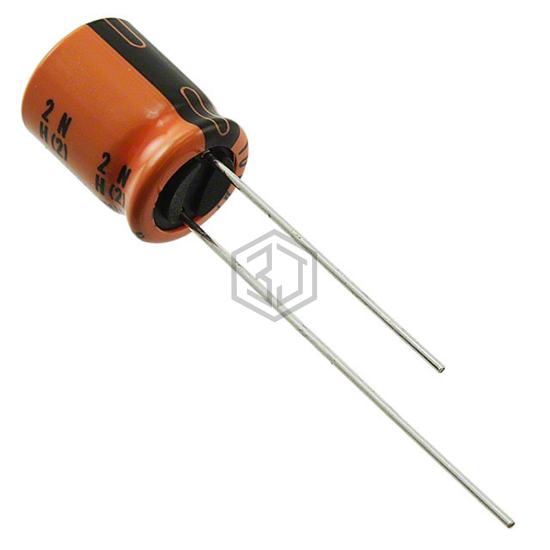

CAP ALUM 100UF 20% 50V RADIAL
EGXL500ETD101MJC5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,955
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 236 mA @ 120 Hz |
| Ripple Current @ High Frequency | 590 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT1H101MPD8TD | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 89% | View |
| UBT1V101MPD8TD | Nichicon | CAP ALUM 100UF 20% 35V RADIAL | 75% | View |
| EEU-TA1V101B | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V RADIAL | 74% | View |
| UBT1K101MPD8TD | Nichicon | CAP ALUM 100UF 20% 80V RADIAL | 68% | View |
| UBT1K101MPD8 | Nichicon | CAP ALUM 100UF 20% 80V RADIAL | 68% | View |
| UBT1E101MPD8TA | Nichicon | CAP ALUM 100UF 20% 25V RADIAL | 67% | View |
