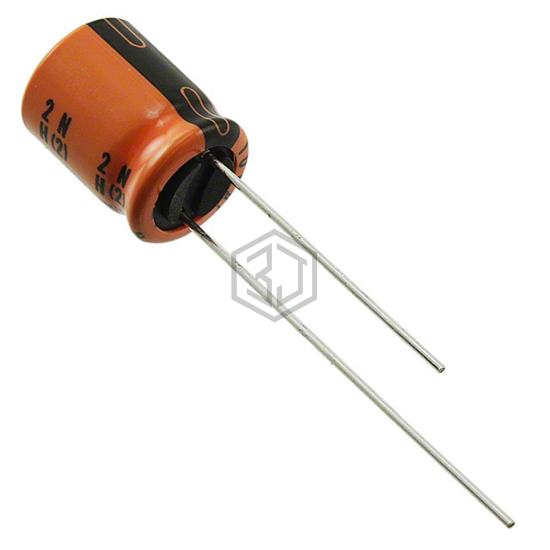

CAP ALUM 100UF 20% 50V RADIAL
EGXL500EC5101MJC5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,703
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 236 mA @ 120 Hz |
| Ripple Current @ High Frequency | 590 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1J101MPD | Nichicon | CAP ALUM 100UF 20% 63V RADIAL | 79% | View |
| UBT1J101MPD | Nichicon | CAP ALUM 100UF 20% 63V RADIAL | 79% | View |
| MAL211937101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 40V AXIAL | 76% | View |
| 860130575004 | Würth Elektronik | CAP ALUM 100UF 20% 35V RADIAL | 76% | View |
| EEU-TP1V101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V RADIAL | 74% | View |
| 35ZT100MTA8X11.5 | Rubycon | CAP ALUM 100UF 20% 35V RADIAL | 67% | View |
Submit your RFQ for EGXL500EC5101MJC5S and get a quote within 24 hours.
