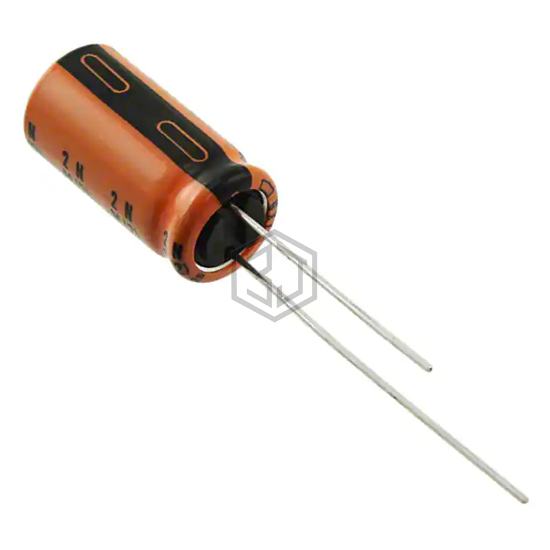

CAP ALUM 330UF 20% 35V RADIAL
EGXL350EC3331MJ20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,264
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | 94 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXF500ELL331MJ20S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL TH | 85% | View |
| RUA331M1EBK-1325S | SURGE | CAP ALUM 330UF 20% 25V RADIAL | 82% | View |
| MAL214066331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 82% | View |
| B41866C6337M002 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 50V RADIAL | 82% | View |
| EEU-TA1H331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V RADIAL | 81% | View |
| UBT1J331MHD8 | Nichicon | CAP ALUM 330UF 20% 63V RADIAL | 81% | View |
