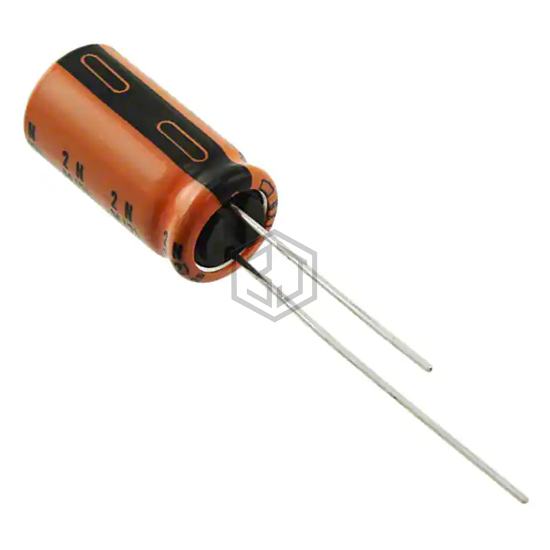

CAP ALUM 470UF 20% 25V RADIAL
EGXL250ETD471MJ20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,018
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | 94 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25RX30470MCT10X16 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 88% | View |
| UBT1E471MPD1TD | Nichicon | CAP ALUM 470UF 20% 25V RADIAL | 87% | View |
| UBW1V471MHD | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 84% | View |
| UBX1J471MHL1TN | Nichicon | CAP ALUM 470UF 20% 63V RADIAL | 78% | View |
| UBT1K471MHD8 | Nichicon | CAP ALUM 470UF 20% 80V RADIAL | 74% | View |
| EEU-TP1V471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V RADIAL | 68% | View |
