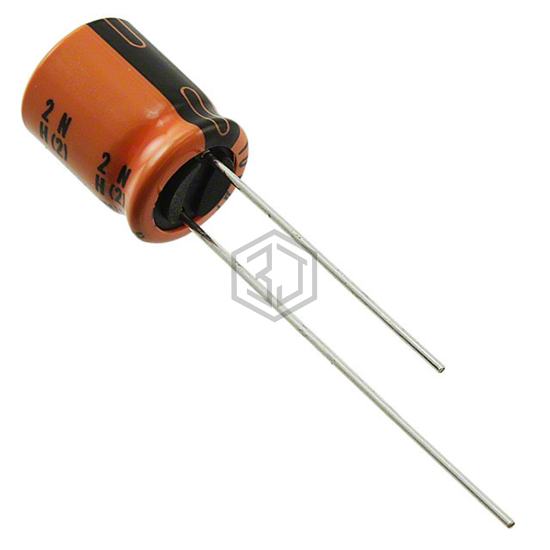

CAP ALUM 330UF 20% 16V RADIAL
EGXL160EC5331MJC5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,614
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | 170 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RUK331M1CBK-1320S | Surge | CAP ALUM 16V POLAR | 95% | View |
| UBX1C331MPL | Nichicon | CAP ALUM 330UF 20% 16V RADIAL | 67% | View |
| EGXF350ELL301MJC5S | United Chemi-Con | CAP ALUM 300UF 20% 35V RADIAL TH | 63% | View |
| MAL216036331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 54% | View |
| EGXL350ETD331MJ20S | United Chemi-Con | CAP ALUM 330UF 20% 35V RADIAL | 54% | View |
| MAL212625331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V AXIAL | 53% | View |
