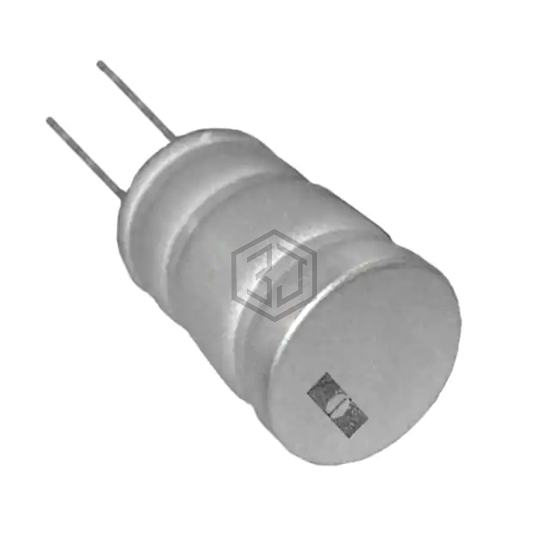

CAP ALUM 510UF 20% 100V RADIAL
EGVD101ELL511MM30H is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 510UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 510 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 38mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
