CAP ALUM 680UF 20% 80V RADIAL

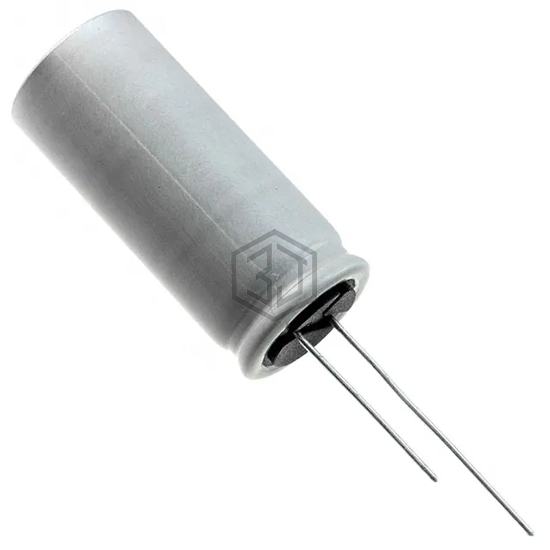

EGPD800ELL681MU30H is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 2,289
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 37mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.016 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.36 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.571" Dia (14.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
EGPD800ELL681MU30H is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPD800ELL751ML30H | United Chemi-Con | CAP ALUM 750UF 20% 80V RADIAL | 90% | View |
| UBY1J751MHL | Nichicon | CAP ALUM 750UF 20% 63V RADIAL | 85% | View |
| EGPD800ELL751MK40H | United Chemi-Con | CAP ALUM 750UF 20% 80V RADIAL | 81% | View |
| UBY1K751MHL | Nichicon | CAP ALUM 750UF 20% 80V RADIAL | 81% | View |
| MAL216055681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 56% | View |
| MAL216050681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 56% | View |
