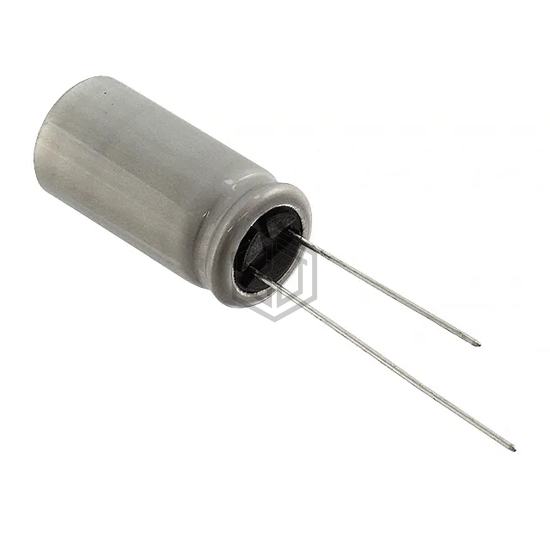

CAP ALUM 390UF 20% 80V RADIAL
EGPD800ELL391MK25H is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 390UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 4,261
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 52mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.26 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.52 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBY1K391MHL1TO | Nichicon | CAP ALUM 390UF 20% 80V RADIAL | 100% | View |
| PEG226MG337RQE4 | KEMET | ALUMINUM ELECTROLYTIC CAPACITORS | 92% | View |
| EGPD101ELL391ML25H | United Chemi-Con | CAP ALUM 390UF 20% 100V RADIAL | 88% | View |
| EGPD630ELL391MK20H | United Chemi-Con | CAP ALUM 390UF 20% 63V RADIAL | 72% | View |
| UBY1J391MHL1TO | Nichicon | CAP ALUM 390UF 20% 63V RADIAL | 72% | View |
| UBY1J391MHL | Nichicon | CAP ALUM 390UF 20% 63V RADIAL | 72% | View |
Submit your RFQ for EGPD800ELL391MK25H and get a quote within 24 hours.
