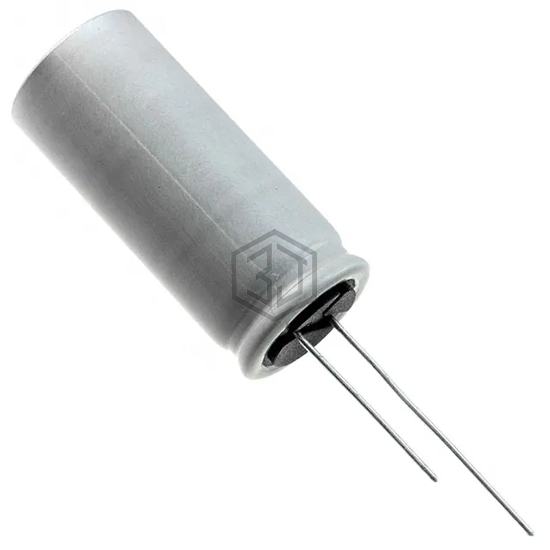

CAP ALUM 2000UF 20% 35V RADIAL
EGPD350ELL202ML20H is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2000UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,369
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 35mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.824 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.04 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-TP1V202 | Panasonic Electronic Components | CAP ALUM 2000UF 20% 35V RADIAL | 89% | View |
| EEU-TP1V202SB | Panasonic Electronic Components | CAP ALUM 2000UF 20% 35V RADIAL | 89% | View |
| EEU-TP1V182SB | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 85% | View |
| UBY1E202MHL1TO | Nichicon | CAP ALUM 2000UF 20% 25V RADIAL | 85% | View |
| UBY1E202MHL | Nichicon | CAP ALUM 2000UF 20% 25V RADIAL | 85% | View |
| EEU-TP1E202S | Panasonic Electronic Components | CAP ALUM 2000UF 20% 25V RADIAL | 79% | View |
Submit your RFQ for EGPD350ELL202ML20H and get a quote within 24 hours.
